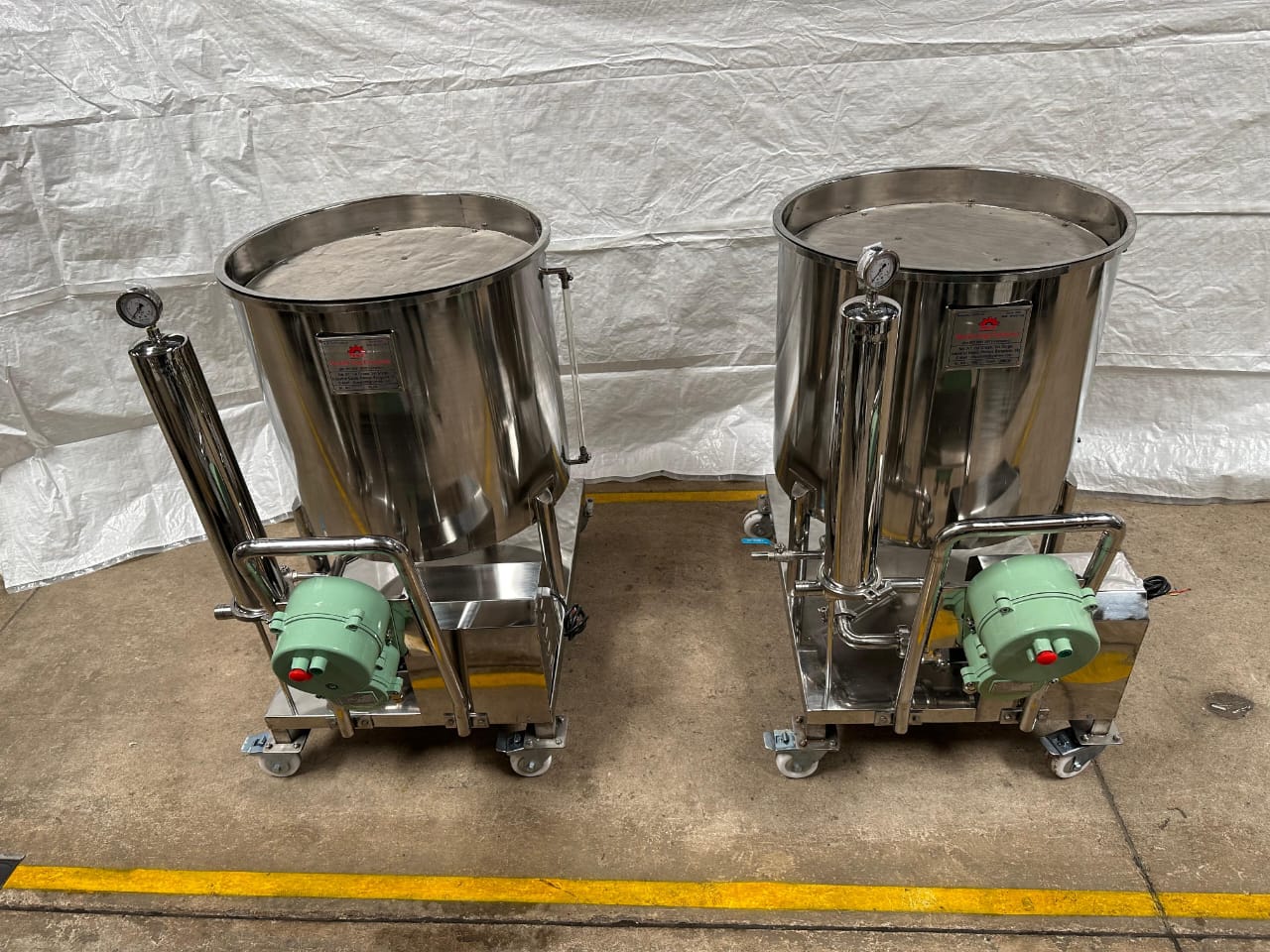

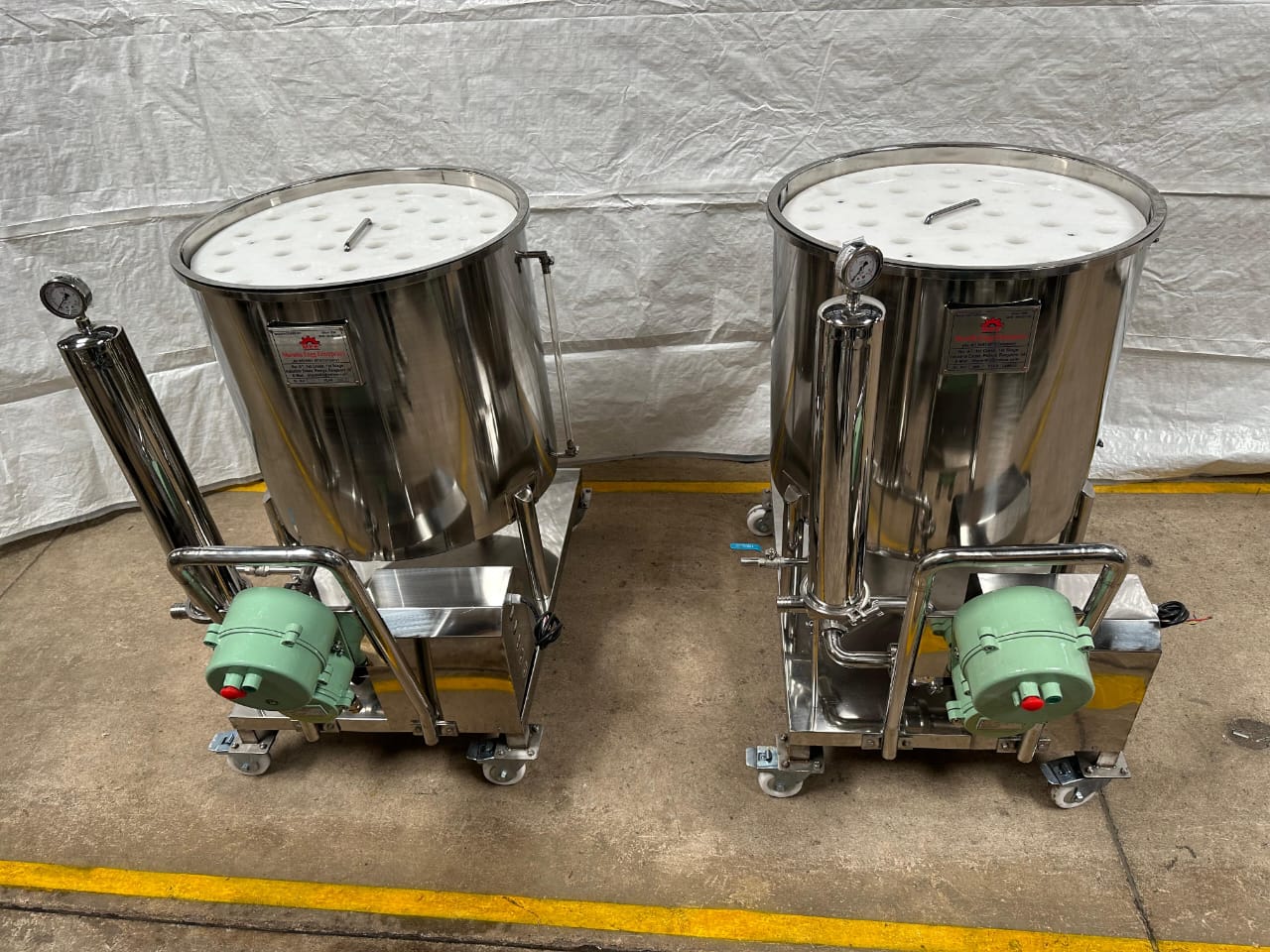

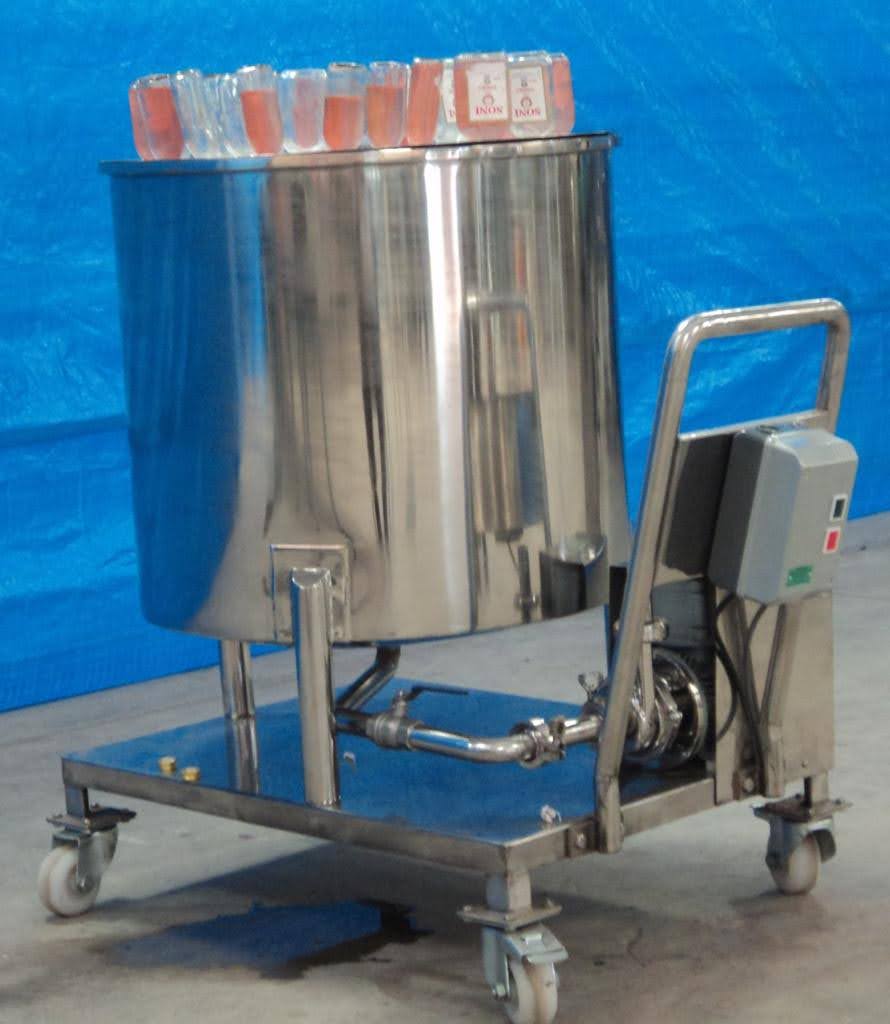

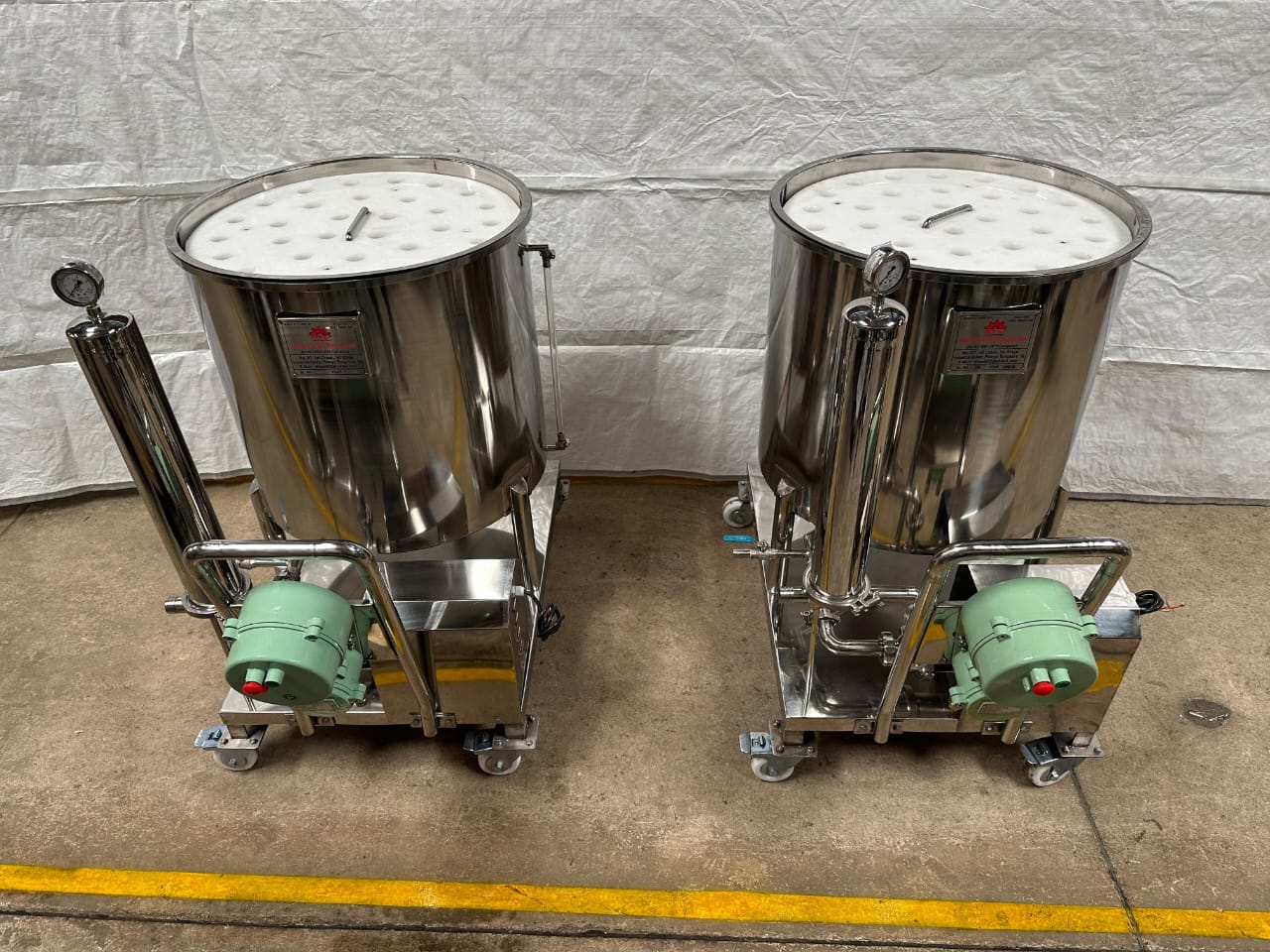

Tank :
Made Out Of S.S. 304, 16swg Sheet With Filter & Top Lid
Tank Size :
690mm Dia X 625mm Height With 200mm Height, 50dia Ss 304, 10swg Pipe For Legs
Provisions :
1” Ss 304, Ic Make Ball Valve With Hose Nipple
Top Lid :
Ss 304, 16swg Sheet
Filter :

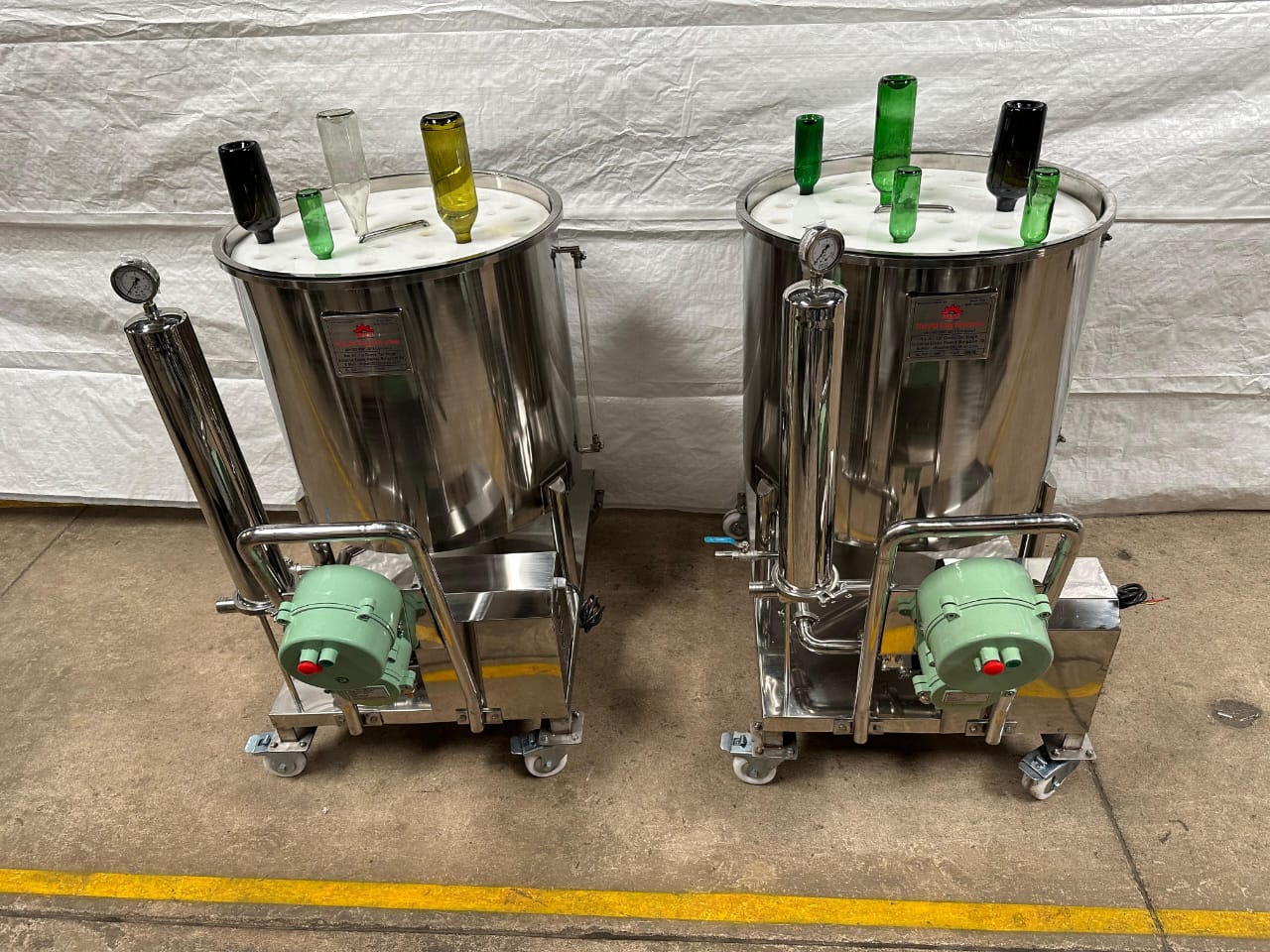

680mm Dia, 125mm Depth With 10mm Holes Perforated Sheet Fixed With 40micron Ss Wire Mesh Along With 670mm Dia, 20mm Thickness Nylon Sheet For Bottles With 32mm Holes.
Transfer Pump :
1” Suction & Delivery Ss 304 Centrifugal Monoblock Transfer PumpWith 1hp, 3phase Flame Proof Motor Remi Make With 1hp 3phase Flame Proof Starter.
Trolley :
Made Out Of Ss 304, 40x40x6 ‘L’ Angle Covered With Ss 304, 16swg Sheet Along With 4x2 Moveable Break Type Wheels 4 Nos.
Cartridge Housing :
Ss 304, 20” H, X 2 ½”Dia With Pressure Gauge & Fittings Accessories
