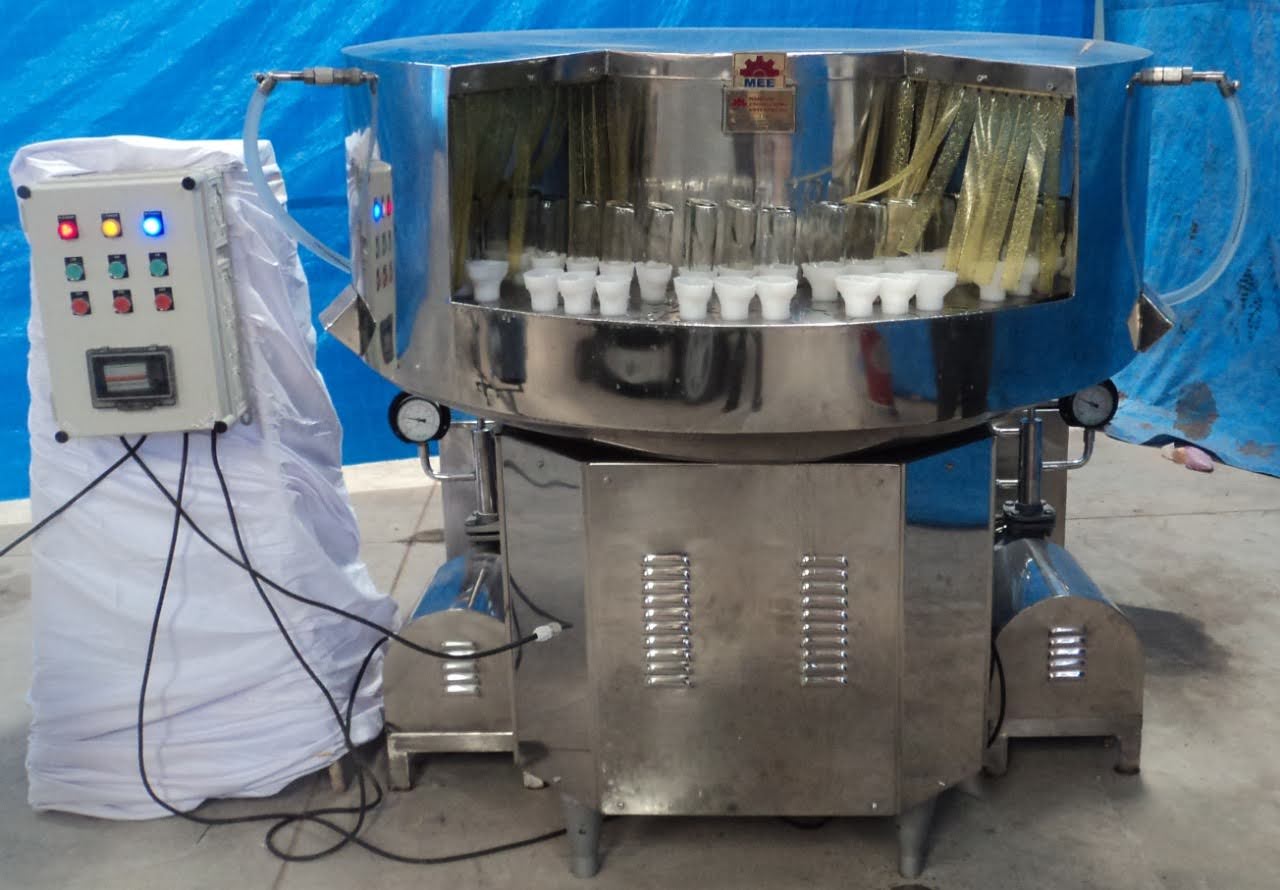

Specifications:

• Body : Made out of S.S. 304 Sheet, Angle & Rods,

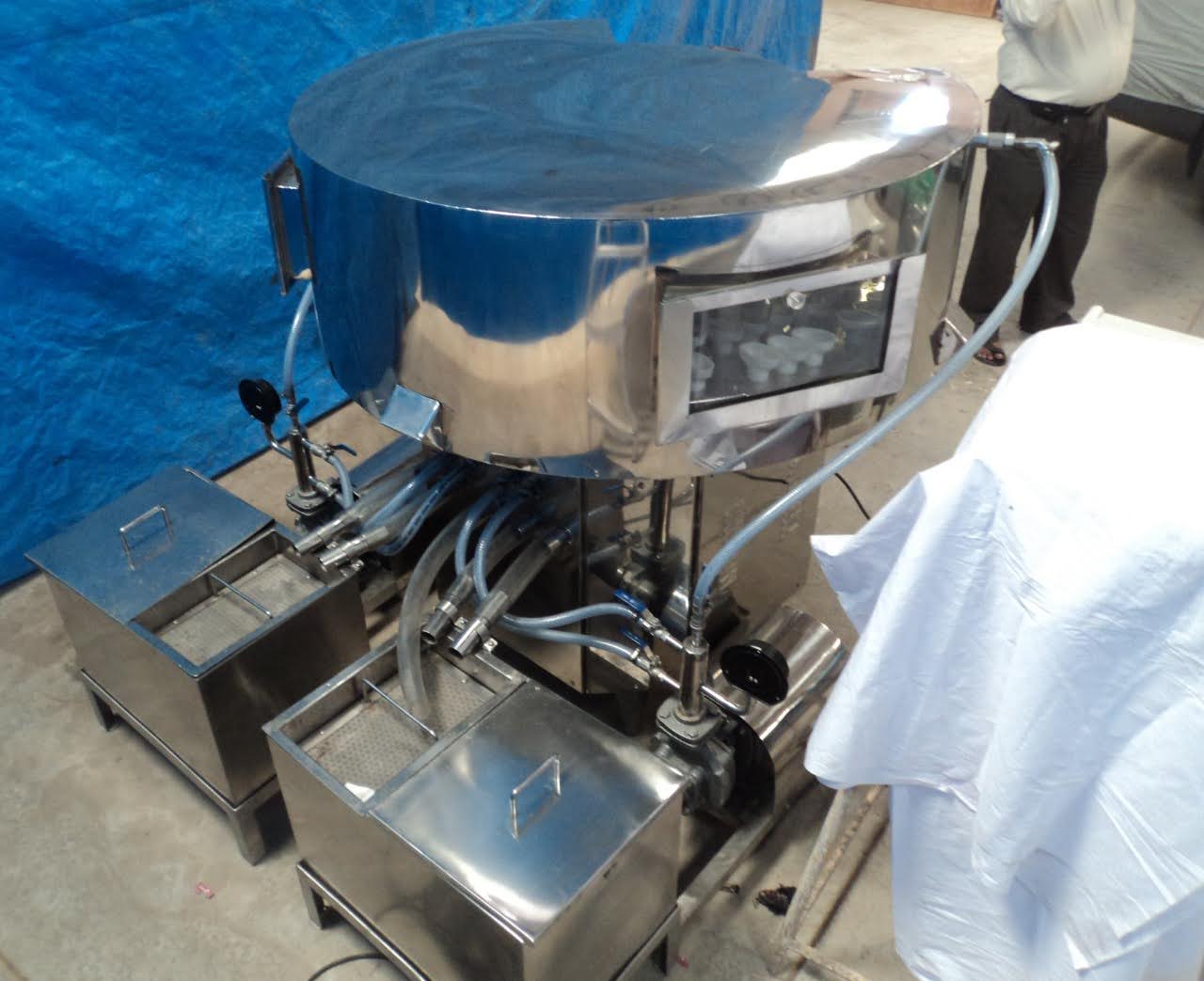

• Tank : Service tank 2Nos. made out of S.S. 304 sheet
• Pump : SS Centrifugal pump.
• Valve : S.S. 304, IC Make
• Filters : Square Filter 2 Nos. for the service Tank & Round Filter 2 Nos. for suction
• Pressure : 2.7 Kg
• Pressure gauge : 4” Dia glycerin filled pressure gauge S.S.
• Operation : Manual loading and unloading of bottles.
• Motor : 1000 RPM, 1HP Standard Make.
• Gear Box : Standard Make, 40:1 ratio
• Panel : Made out of MS material & powder coated, it consists of two 3 HP starters for two pumps and one 1 HP starter for Driver motor along with RCCBO and pressure transducer for each pump with controller to assure pressure of uniform bar along with all standard electrical wiring and diagram. It consists of RCCBO, emergency stop, panel covering with polycarbonate sheet to avoid contact and double earthing in the panel.
