Jacketed Vessels

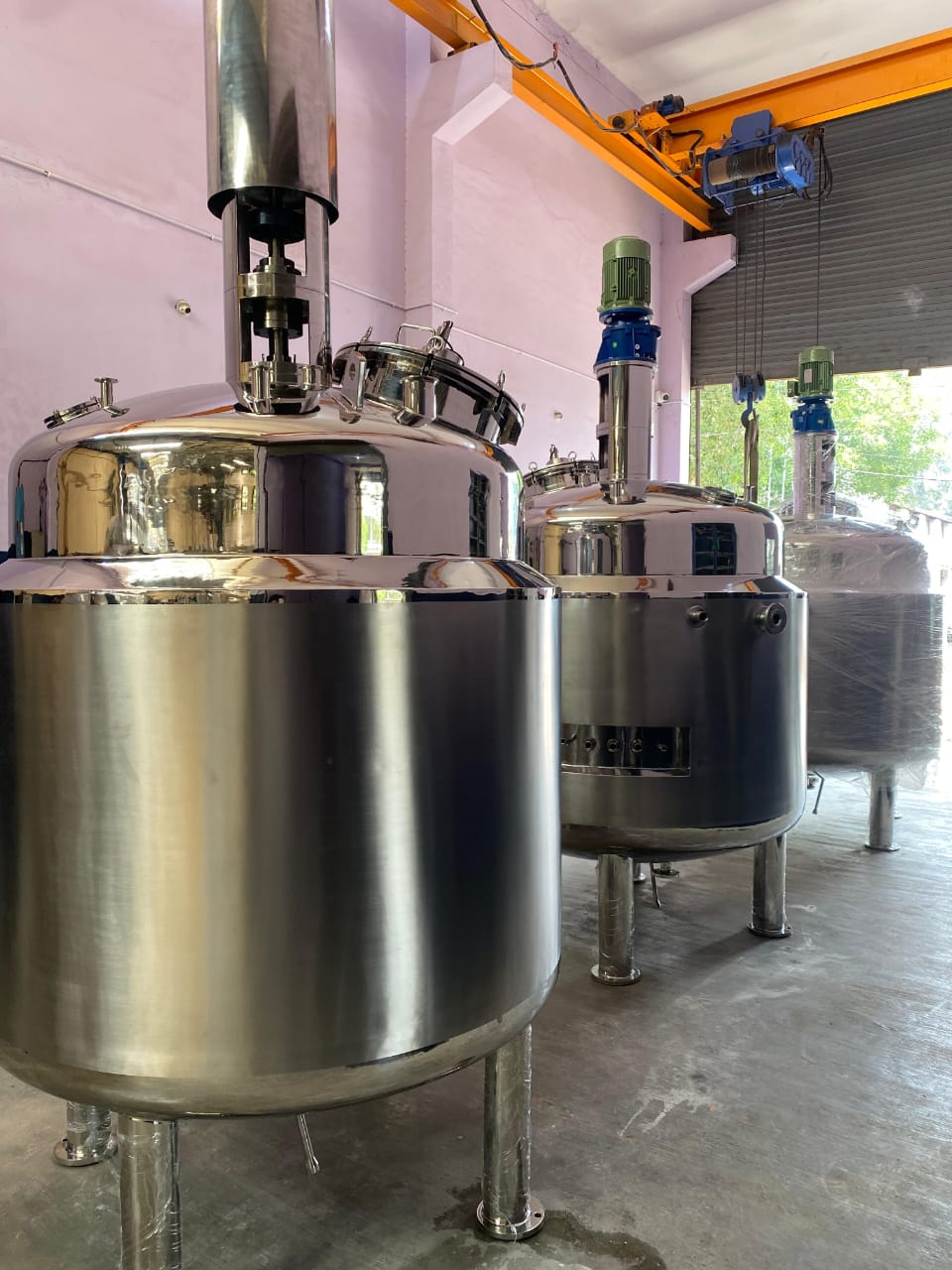

SS 1000 Ltr Vessel Jacketed & Insulated With Top Seal & Anchor Stirrer and VFD Panel.

Shell Size : 1250mm Dia X 625+ 625 mm height
Overall size : 1700mm X 1700mm X 2800mm Height.
MOC : SS 316 for all contact Parts
Shell : SS 316, 8mm thickness.
Jacket : SS 304, 8mm thickness
SS Insulation : SS 304 3mm thickness.
Bottom Dish : 8mm Thk SS 316
Top Dish end : 8mm Thk SS 316
Shell Design : 1 to 100 °C Temperature
Shell Working : 1 to 80 °C Temperature
Agitator System : Top Mounted flange type stirrer along with anchor type rotar for mixing – 02 Nos - 1050 mm Dia with 350mm Long Teflon scrapper
Provisions : a. Lifting Hook – 02 Nos
b. Manhole – 450 Dia with Lid locking and view glass
c. Spray Ball – 3” Dia - 01 No on Top
d. LED light – 3” Union type on Top Dish
e. Inlet - 25NB Flange - 01 No and 40NB Flange - 03 Nos
Jacket: SS 304 8mm Thickness 1366 mm ID – Steam operated up to 95° and 10 Kg Hydro-Pressure.
Connections : SS all connection with TC end fitting and other standard make fittings
Bottom outlet : 100mm Flush bottom valve with TC end.
Legs : 4” Dia NB x 5mm Thk SS 304 quality with SS 304 16mm Bottom plates.
Panel Board : Made out of SS 304 along with Temperature Control Panel Wall Fitted Type.
Finish : Electro Polish and Passivated.
Safety : All Valve Inlet and Outlet with Safety Valve, Air Valve, Pg., And SS MOC 316 Quality.
Gearbox Motor : 7.5 HP Top Stirrer model with RPM controlled by VFD (60 RPM), Make – Bonfiglioli Motor - Hindustan
